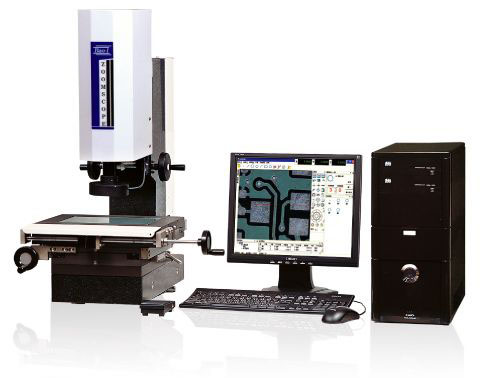

OKV-2010
|
|
X-Y軸移動範圍(mm) |
|
Range-X-Y
axis(mm) |
|
X=200 Y=100
|
|
Z軸移動範圍(mm) |
|
Range-Z
axis
(mm) |
|
130
|
|
光學尺(*1)Acu-Rite |
|
Resolution
(*1)
Acu-Rite |
|
1um(玻璃尺) |
|
線性精度(Accuracy) |
U1=3+(6L/1000)um
U2=4+(6L/1000)um |
|
基座(Machine base) |
花崗石符合DIN00級
Granite(complied
with DIN 00
level) |
|
主軸(Main shaft)
|
花崗石符合DIN00級
Granite(complied
with DIN 00
level) |
|
主機重量(Weight) |
95KG |
|
主機尺寸L×W×H(mm) |
|
Dimension
L×W×H(mm) |
|
550×500×600 |
|
|
|
|
|
|
|
日本SENTECH
41萬Pixel
Japanese
SENTECH
(410,000
Pixel)
|
|
|
0.7-4.5X(20-150X) |
|
表面照明(Surface illumination) |
|
LED環形光(可16分割)
Circular
LED
light(capable
of 16
division)
|
|
輪廓照明
(Contour illumination) |
|
LED |
|
控制量測系統
(Contour
illumination) |
MI2.5D手動 MI2.5D manual |
|
驅動(Driver) |
手動 Manual |
|
控制方法(Controlling
method) |
X-Y軸可快速移動,Z軸手動
X-Y axis-quick
release ,Z
axis-manual |
|
電力供應(Power supply) |
AC100-240V/1KVA |
|
|
|
|
 |
|
|
|
|
|
